Cutting Edge
Universal Thermal Imaging Module BRAVO
NDAA Compliant. ITAR Free.
Ultra-Compact. High-Precision. AI-Ready.

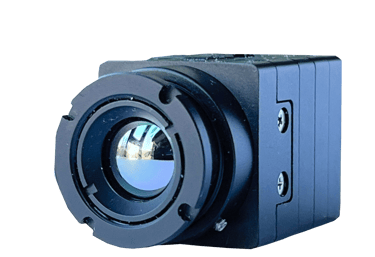

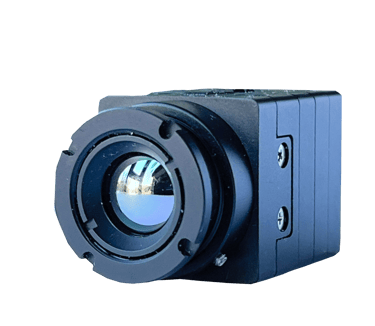

Engineered for advanced thermal detection, the AIVT BRAVO 640 module delivers exceptional ±0.5°C thermal accuracy in an ultra-light 25g form factor, measuring just 24(H) x 24(W) mm.
Pixel Pitch 12um
NETD <40mK (sensor)
Frame Rate 30/60 FPS
Video CH - CMOS (BT.656, RGB)
UVC (YUV, RGB, H.264)
RTSP (YUV, RGB, H.264)
MIPI-CSI (YUV, RGB) (with Accessory)
Analog (NTSC, PAL) (with Accessory)
Field of Views 4.4°~95°
Size & Weight 24x24x20.5mm, 25g
Wavelength 8 – 14 µm
BRAVO 640x480 (w/h 9.1mm lens)
NDAA Compliant
NDAA compliant camera systems are security cameras that adhere to the standards established by the National Defense Authorization Act (NDAA). This legislation aims to ensure that surveillance cameras do not introduce any cybersecurity risks or weaknesses. By adopting NDAA compliant camera systems, businesses and organizations can improve their security protocols and safeguard confidential data.
Optimized for AI integration, BRAVO enables up to 95% of thermal-based and machine vision applications — powering drones, industrial inspections, predictive maintenance, security systems, and intelligent surveillance with unmatched reliability and precision
FPV Drones and Surveillance
Empowering drones with AI algorithms for real-time image analysis, object detection, and anomaly identification. From monitoring traffic patterns to ensuring safety in critical military operations, our technology offers unmatched precision and speed
Long Range Marine
Navigate safely with advanced thermal imaging and AI. From vessel monitoring to search and rescue operations, our technology ensures visibility and efficiency in the toughest marine environments
Our AI-driven CCTV solutions redefine security by offering real-time threat detection, recognition, and perimeter monitoring. Ensure maximum safety for residential, commercial, and industrial spaces
Industrial Inspection and CCTV for Critical Infostructure
Customizable Objectives
Discover our wide selection of halogenide objective lenses—available in both standard and fully customizable options to meet the precision needs of your thermal imaging applications.
Customizable output
All AIVT cameras offer fully customizable output and can be configured to operate over CVBS, USB-C, or MIPI depending on the integration requirements
