Next-Generation Universal Thermal Imaging camera

HCO 3

Ultra-Compact. Ultra-Precision. Ultra-Stable.

AI-Ready.

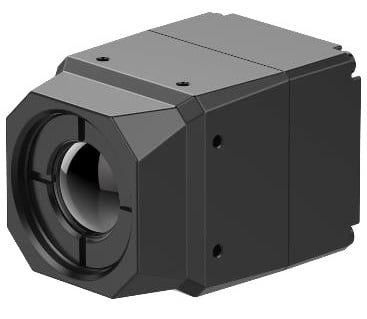

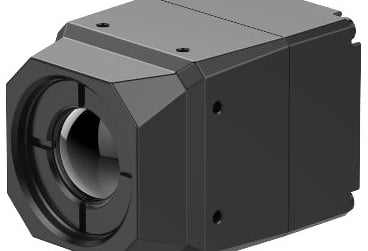

Compact, efficient, and remarkably stable — the AIVT ECHO 3 module brings professional-grade thermal performance to platforms once limited by size and power.

HCO 3 640x512 (w/h 9.1mm lens)

Inquire

Pixel Pitch 12um
Wavelength 8 – 14 µm
Resolution 640x512
NETD <30mK (sensor)
Frame Rate 25/50 FPS
Video CH - CMOS (BT.656, RGB)
UVC (YUV, RGB, H.264)
RTSP (YUV, RGB, H.264)
Field of Views 47.7x38.2
MIPI-CSI (YUV, RGB) (optional)
Analog (NTSC, PAL) (optional)
Size & Weight 22.2x22.2x31.5mm, 27g
Power Consumption 0.6W

Key Advantages

Ultra-sensitive VOx detector of <30 mK NETD ensures precise thermal contrast and detail in any condition
Exceptionally low power consumption of 0.68 W is ideal for battery-driven UAV and mobile platforms
Featherweight 33 g construction for effortless integration into small gimbals and embedded payloads
Shutterless SFFC technology delivers continuous, smooth imaging without mechanical interruption
Compact 22 mm form factor enables dense multi-sensor configurations and minimal system footprint

Compact, efficient, and remarkably stable — the AIVT ECHO 3 brings professional-grade thermal performance to platforms once limited by size and power.

Its miniature form, exceptional sensitivity, and low-energy design make it the ultimate choice for modern UAVs, mobile robots, and AI-enhanced imaging systems where clarity and efficiency must coexist.

FPV Drones and Surveillance

Empowering drones with AI algorithms for real-time image analysis, object detection, and anomaly identification. From monitoring traffic patterns to ensuring safety in critical military operations, our technology offers unmatched precision and speed

Long Range Marine

Navigate safely with advanced thermal imaging and AI. From vessel monitoring to search and rescue operations, our technology ensures visibility and efficiency in the toughest marine environments

Our AI-driven CCTV solutions redefine security by offering real-time threat detection, recognition, and perimeter monitoring. Ensure maximum safety for residential, commercial, and industrial spaces

Industrial Inspection and CCTV for Critical Infostructure

Precision Meets Integration

Customizable Objectives

Discover our wide selection of halogenide objective lenses—available in both standard and fully customizable options to meet the precision needs of your thermal imaging applications.
