High performance
Universal Thermal Imaging camera
HCO 1
Ultra-Compact. High-Precision. AI-Ready.
Resolution 640x512
Pixel Pitch 12um
NETD <40mK (sensor)
Wavelength 8 – 14 µm
Frame Rate 30/50 FPS
Video CH - CMOS (BT.656, RGB)
UVC (YUV, RGB, H.264)
RTSP (YUV, RGB, H.264)
Field of Views 4.4°~95°
Size & Weight 24x24x20.5mm, 25g
Analog (NTSC, PAL) (with Accessory)
MIPI-CSI (YUV, RGB) (with Accessory)
HCO 1 640x512 (w/h 9.1mm lens)
When every gram and frame matters — HCO HCO 1 delivers.
Powered by a VOx microbolometer with 12 µm pixel pitch and ≤ 40 mK NETD, this ultra-compact thermal core captures fine-detail temperature signatures even in the harshest weather conditions.
Ultra-sensitive VOx detector of <30 mK NETD ensures precise thermal contrast and detail in any condition
Exceptionally low power consumption of 0.68 W is ideal for battery-driven UAV and mobile platforms
Featherweight 33 g construction for effortless integration into small gimbals and embedded payloads
Shutterless SFFC technology delivers continuous, smooth imaging without mechanical interruption
Compact 22 mm form factor enables dense multi-sensor configurations and minimal system footprint
Key Advantages
Optimized for AI integration, BRAVO enables up to 95% of thermal-based and machine vision applications — powering drones, industrial inspections, predictive maintenance, security systems, and intelligent surveillance with unmatched reliability and precision
FPV Drones and Surveillance
Empowering drones with AI algorithms for real-time image analysis, object detection, and anomaly identification. From monitoring traffic patterns to ensuring safety in critical military operations, our technology offers unmatched precision and speed
Long Range Marine
Navigate safely with advanced thermal imaging and AI. From vessel monitoring to search and rescue operations, our technology ensures visibility and efficiency in the toughest marine environments
Our AI-driven CCTV solutions redefine security by offering real-time threat detection, recognition, and perimeter monitoring. Ensure maximum safety for residential, commercial, and industrial spaces
Industrial Inspection and CCTV for Critical Infostructure
Precision Meets Integration

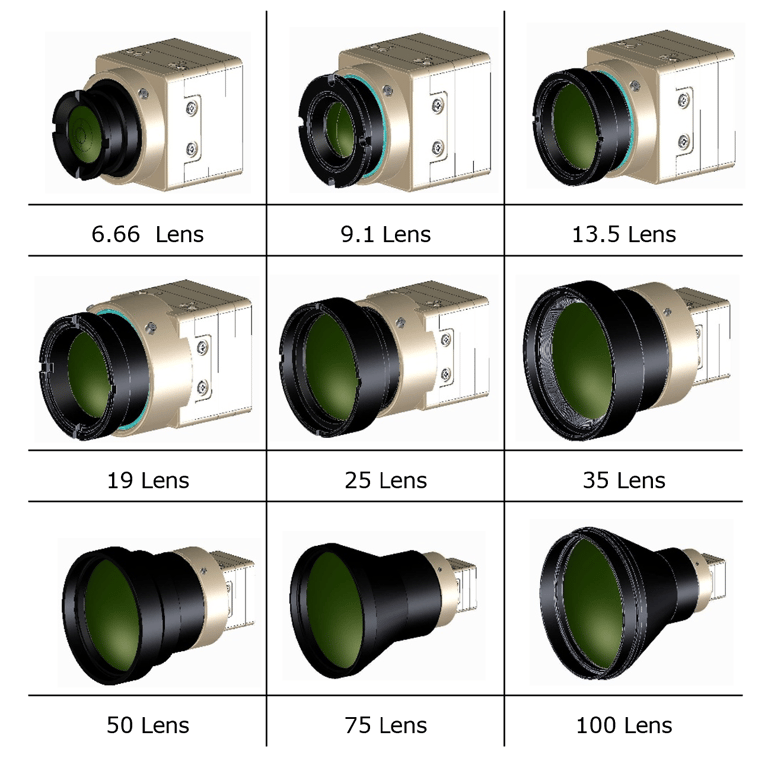

Customizable Objectives
Discover our wide selection of halogenide objective lenses—available in both standard and fully customizable options to meet the precision needs of your thermal imaging applications.

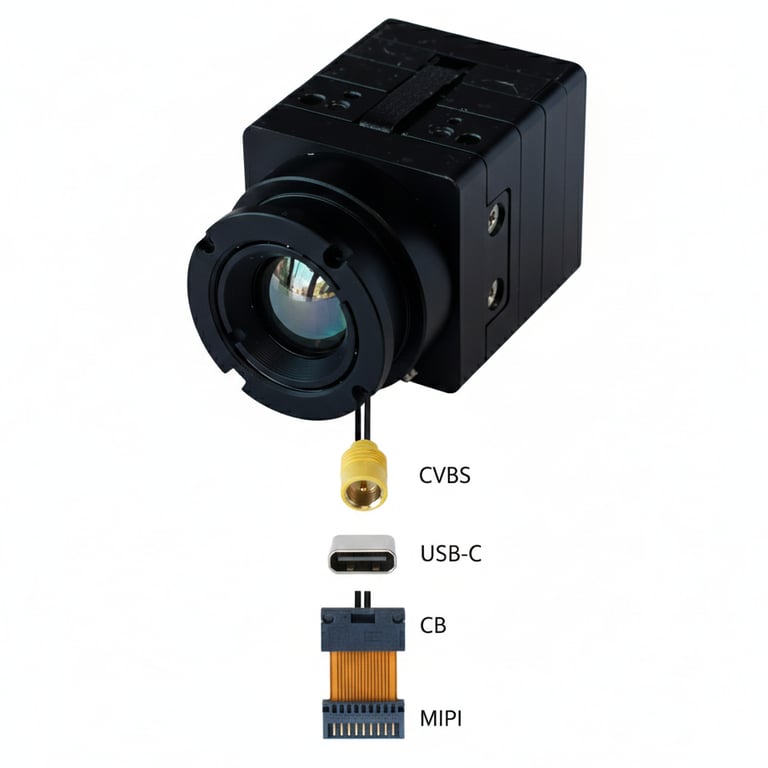

Customizable output
All AIVT cameras offer fully customizable output and can be configured to operate over CVBS, USB-C, or MIPI depending on the integration requirements
